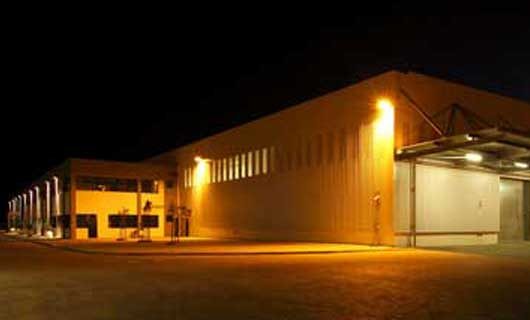

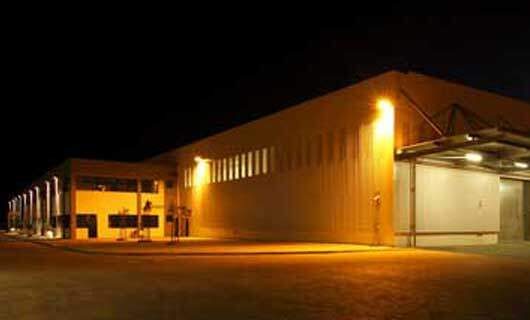

LED belysning på industrifasad på natten

LED belysning – för personalens trygghet

På industriområden kan armaturerna vara monterade i master/stolpar eller på fasader, ofta relativt högt upp där ett byte av trasiga konventionella ljuskällor är besvärligt. Här är driftsäkra LED strålkastare med lång livslängd en fördelaktig investering. Läs mer

Rekommenderade belysningsnivåer enligt svensk standard Läs mer

Källa: SS-EN12464-2:2014




	Kategori Type of area, task or activity Em lux RGL Uo Ra Specific requirements




	Allmänna ytor Walkways exclusively for pedestrians 5 50 0.25 20


	Allmänna ytor Traffic areas for slowly moving vehicles (max. 10 km/h), e.g. bicycles, trucks and excavators 10 50 0.4 20


	Allmänna ytor Regular vehicle traffic (max. 40 km/h) 20 45 0.4 20 At shipyards and in docks, RGL may be 50


	Allmänna ytor Pedestrian passages, vehicle turning, loading and unloading points 50 50 0.4 20


	Allmänna ytor Cleaning and servicing 50 50 0.25 20 All relevant surfaces


	Industriområden Short-term handling of large units and raw materials, loading and unloading of solid bulk goods 20 55 0.25 20


	Industriområden Continuous handling of large units and raw materials, loading and unloading of freight, lifting and descending location for cranes, open loading platforms 50 50 0.4 20


	Industriområden Reading of addresses, covered loading 100 45 0.5 20


	Industriområden platforms, use of tools, ordinary reinforcement and casting tasks in concrete plants


	Industriområden Demanding electrical, machine and piping installations, inspection 200 45 0.5 60 Use local lighting


	Kemisk Handling of servicing tools, utilization of manually regulated valves, starting and stopping motors, lighting of burners 20 55 0.25 20


	Kemisk Filling and emptying of container trucks and wagons with risk free substances, inspection of leakage, piping and packing 50 50 0.4 20


	Kemisk Filling and emptying of container trucks and wagons with dangerous substances, replacements of pump packing, general service work, reading of instruments 100 45 0.4 40


	Kemisk Fuel loading and unloading sites 100 45 0.4 20


	Kemisk Repair of machines and electric devices 200 45 0.5 60 Use local lighting


	Elkraft Pedestrian movements within electrically safe areas 5 50 0.25 20


	Elkraft Handling of servicing tools, coal 20 55 0.25 20


	Elkraft Overall inspection 50 50 0.4 20


	Elkraft General servicing work and reading of instruments 100 45 0.4 40


	Elkraft Repair of electric devices 200 45 0.5 60 Use local lighting


	Sågverk Timber handling on land and in water, sawdust and chip conveyors 20 55 0.25 20


	Sågverk Sorting of timber on land or in water, timber unloading points and sawn timber loading points, mechanical lifting to timber conveyor, stacking 50 50 0.4 20


	Sågverk Reading of addresses and markings of sawn timber 100 45 0.4 40


	Sågverk Grading and packaging 200 45 0.5 40


	Sågverk Feeding into stripping and chopping machines 300 45 0.5 40


	Fartygsdockor General lighting of shipyard area, storage areas for prefabricated goods. 20 55 0.25 40


	Fartygsdockor Short-term handling of large units 20 55 0.25 20


	Fartygsdockor Scraping, cleaning and painting of ship hull 50 50 0.25 20


	Fartygsdockor Painting and welding 100 45 0.4 60


	Fartygsdockor Mounting of electrical and mechanical components 200 45 0.5 60


	Vattenanläggningar Handling of service tools, utilization of manually operated valves, starting and stopping of motors, piping packing and raking plants 50 45 0.4 20


	Vattenanläggningar Handling of chemicals, inspection of leakage, changing of pumps, general servicing work, reading of instruments 100 45 0.4 40


	Vattenanläggningar Repair of motors and electric devices 200 45 0.5 60

Kategori	Type of area, task or activity	Em lux	RGL	Uo	Ra	Specific requirements
Allmänna ytor	Walkways exclusively for pedestrians	5	50	0.25	20
Allmänna ytor	Traffic areas for slowly moving vehicles (max. 10 km/h), e.g. bicycles, trucks and excavators	10	50	0.4	20
Allmänna ytor	Regular vehicle traffic (max. 40 km/h)	20	45	0.4	20	At shipyards and in docks, RGL may be 50
Allmänna ytor	Pedestrian passages, vehicle turning, loading and unloading points	50	50	0.4	20
Allmänna ytor	Cleaning and servicing	50	50	0.25	20	All relevant surfaces
Industriområden	Short-term handling of large units and raw materials, loading and unloading of solid bulk goods	20	55	0.25	20
Industriområden	Continuous handling of large units and raw materials, loading and unloading of freight, lifting and descending location for cranes, open loading platforms	50	50	0.4	20
Industriområden	Reading of addresses, covered loading	100	45	0.5	20
Industriområden	platforms, use of tools, ordinary reinforcement and casting tasks in concrete plants
Industriområden	Demanding electrical, machine and piping installations, inspection	200	45	0.5	60	Use local lighting
Kemisk	Handling of servicing tools, utilization of manually regulated valves, starting and stopping motors, lighting of burners	20	55	0.25	20
Kemisk	Filling and emptying of container trucks and wagons with risk free substances, inspection of leakage, piping and packing	50	50	0.4	20
Kemisk	Filling and emptying of container trucks and wagons with dangerous substances, replacements of pump packing, general service work, reading of instruments	100	45	0.4	40
Kemisk	Fuel loading and unloading sites	100	45	0.4	20
Kemisk	Repair of machines and electric devices	200	45	0.5	60	Use local lighting
Elkraft	Pedestrian movements within electrically safe areas	5	50	0.25	20
Elkraft	Handling of servicing tools, coal	20	55	0.25	20
Elkraft	Overall inspection	50	50	0.4	20
Elkraft	General servicing work and reading of instruments	100	45	0.4	40
Elkraft	Repair of electric devices	200	45	0.5	60	Use local lighting
Sågverk	Timber handling on land and in water, sawdust and chip conveyors	20	55	0.25	20
Sågverk	Sorting of timber on land or in water, timber unloading points and sawn timber loading points, mechanical lifting to timber conveyor, stacking	50	50	0.4	20
Sågverk	Reading of addresses and markings of sawn timber	100	45	0.4	40
Sågverk	Grading and packaging	200	45	0.5	40
Sågverk	Feeding into stripping and chopping machines	300	45	0.5	40
Fartygsdockor	General lighting of shipyard area, storage areas for prefabricated goods.	20	55	0.25	40
Fartygsdockor	Short-term handling of large units	20	55	0.25	20
Fartygsdockor	Scraping, cleaning and painting of ship hull	50	50	0.25	20
Fartygsdockor	Painting and welding	100	45	0.4	60
Fartygsdockor	Mounting of electrical and mechanical components	200	45	0.5	60
Vattenanläggningar	Handling of service tools, utilization of manually operated valves, starting and stopping of motors, piping packing and raking plants	50	45	0.4	20
Vattenanläggningar	Handling of chemicals, inspection of leakage, changing of pumps, general servicing work, reading of instruments	100	45	0.4	40
Vattenanläggningar	Repair of motors and electric devices	200	45	0.5	60
